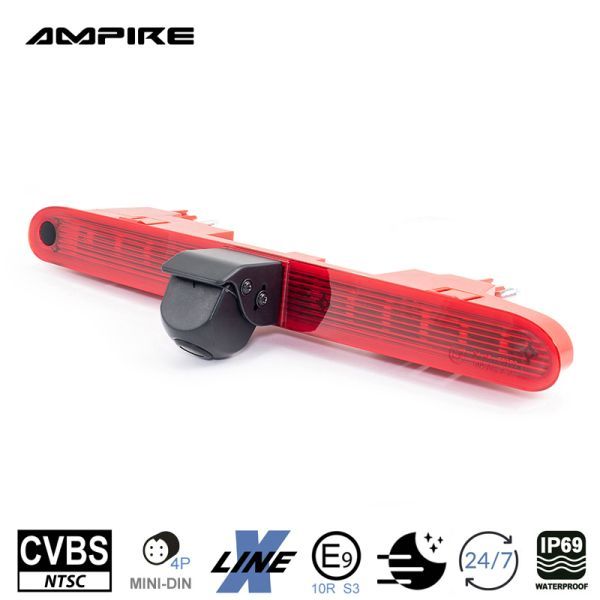

AMPIRE KVX-BERLINGO – REAR VIEW CAMERA FOR CITROEN BERLINGO 2008-XX, PEUGEOT PARTNER/RIFTER 2008-XX, OPEL COMBO 2018-XX, FIAT DOBLO 3 2022-XX and TOYOTA PROACE CITY 2018-XX

Vehicle-specific reversing camera CVBS (NTSC) to replace the factory brake light glass. Fitting for following vehicles:

• CitroEn Berlingo 3 (from year of construction 2018)
• Fiat Doblo 3 (K9) (from year of construction 2022)
• Opel Combo E (from year of construction 2018)
• Peugeot Rifter (from year of construction 2018)
• Toyota Proace City (from year of construction 2020)

TECHNICAL SPECIFICATIONS

• Mirrored image display
• Image sensor: CMD-III. " High-performance Digital Super Clarity Image Sensor
• Resolution 648x488 pixels
• viewing angle diagonal 185°
• viewing angle horizontal 146°
• viewing angle vertical 110°
• The camera can be vertically adjusted
• Picture format: NTSC
• 580 lines resolution
• IP69 waterproof
• Operating voltage: 9-16 volts DC
• Current consumption: max. 150mA
• Operating temperature: -30° to 70°C
• Minimum illumination: 0 lux
• Cable length: 10 meters
• E approval E9-10R-05.1652
• CE approval EN 55022: 2010; EN61000-3-2:2006+A1:2009+A2:2009; EN61000-3-3:2008; EN55024:2010
• FCC approval ANSI C63.4-2003

SCOPE OF DELIVERY

• camera
• AK1035 power supply
• AK1034 Mini-DIN extension cable 10m

Additional information:

• Product page on Ampire website
• Owner manual
