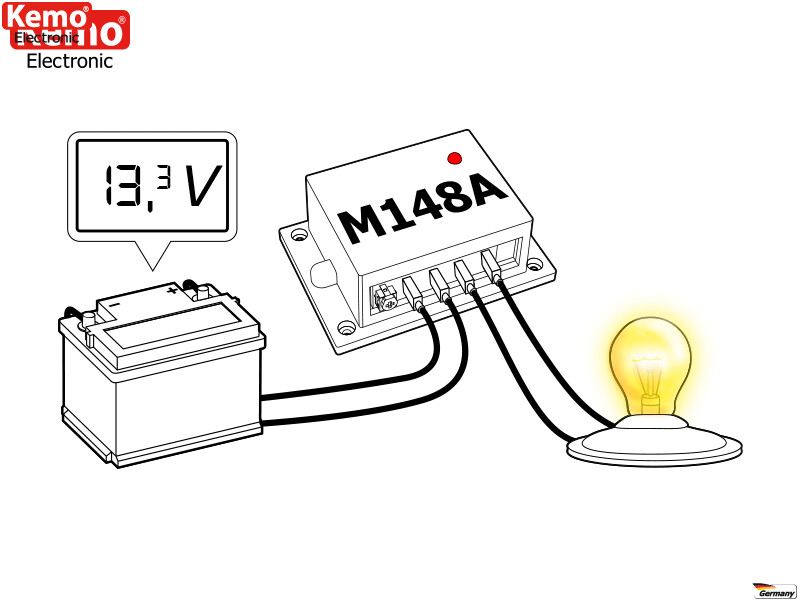

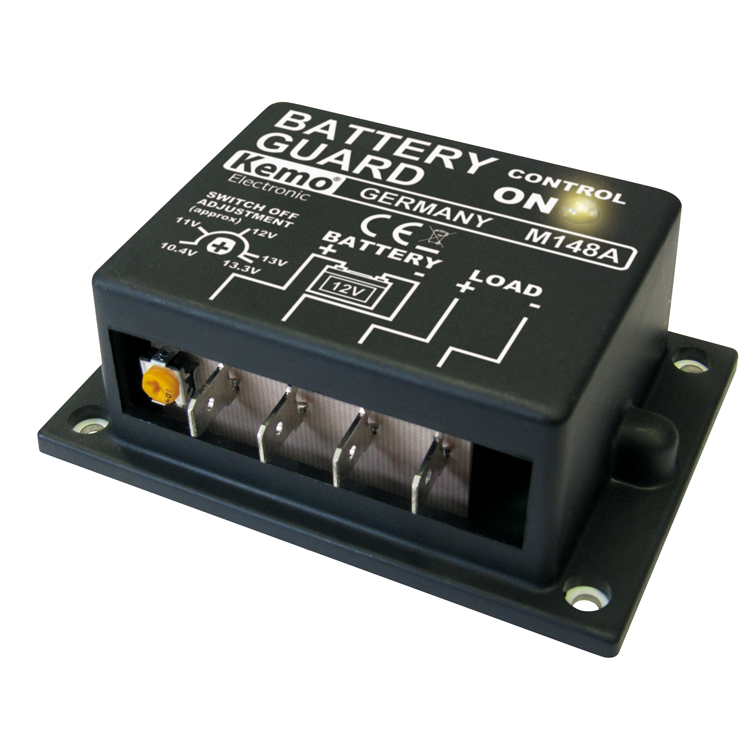

This battery saver protects your car battery from total discharge by switching off consumers such as dashcams, ice boxes, multimedia devices, etc. in time. It switches on again automatically after return of the normal voltage. The interrupting voltage is adjustable: approx. 10.4 - 13.3 V.
Technical Data
Operating voltage:
12 V battery
Max. switching capacity:
20 A (10 A without cooling, 20 A with additional cooling)
Interrupting voltage:
adjustable approx. 10.4 - 13.3 V
Resetting voltage:
approx. 0.8 V (± 0.3 V) higher than the adjusted interrupting voltage
Cutoff element:
power MOS transistor in the negative line
Own current consumption: < 0.7 mA in OFF condition, < 1.6 mA in ON condition (LED lights)

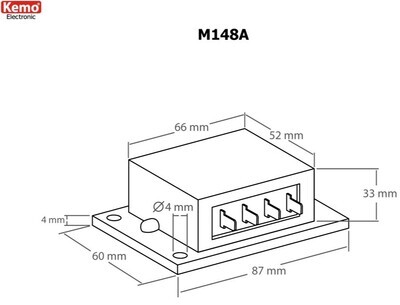

Dimensions:
approx. 87 x 60 x 33 mm (with mounting bottom)
