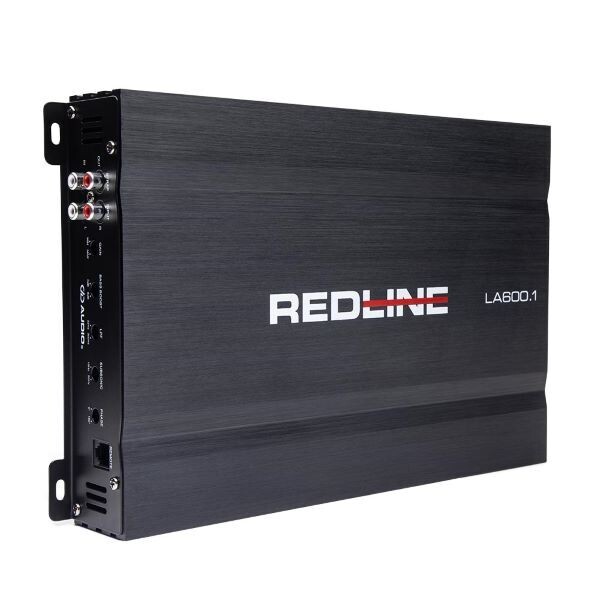

The Class D RL-LA600.1 efficiently delivers the power to drive a DD AUDIO loaded enclosure or DD REDLINE multi subwoofer setups. Bandpass crossovers and bass boost capabilities allow precise tuning of the sub stage while the included remote control knob adds the ability to make on the fly adjustments of the subwoofer volume.

The REDLINE LA Series amplifiers utilize spade terminals for clean and secure connections on both the power input and speaker outputs.

• Variable 12dB Crossovers
• 6dB Bass Boost
• Class D Topology
• Remote Control

Specifications:

• Operating Voltage: 9 - 16
• Test Voltage: 14.4
• Output Channel(s): 1
• Continuous Wattage @4ohm: 1 x 180
• Continuous Wattage @2ohm: 1 x 350
• Continuous Wattage @1ohm: 1 x 600
• Dynamic Wattage: 1200
• Max Current Draw (Amps): 60
• RCA Input Voltage Sensitivity: 6 - 0.25
• RCA Input S/N: 85
• THD: 0.1%
• Bass Boost: 6dB @ 45Hz
• Frequency Response (Hz): 20 - 500
• Sub-Sonic Filter: 10 - 50
• Low-Pass Filter: 32 - 300
• ZVL Input: No
• Pass Thru Output: No
• Power Wire Gauge: Spade Terminal
• Speaker Wire Gauge: Spade Terminal
• Dimensions (Inches): 11.75 x 8.25 x 2
• Dimensions (MM): 298 x 209 x 51
