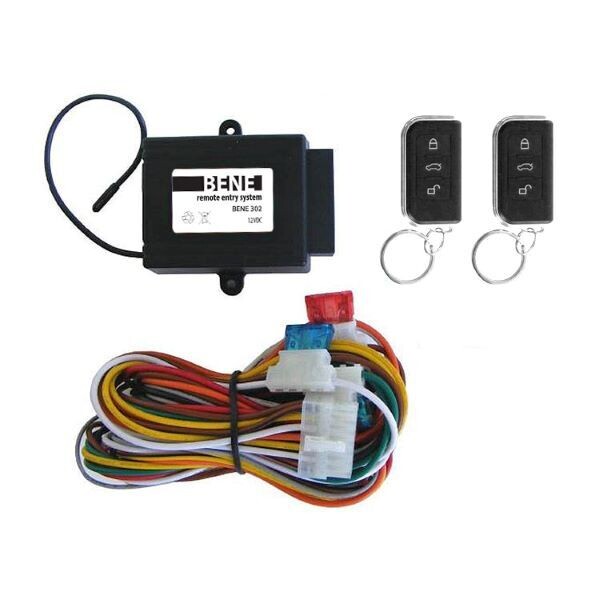

BENE 302 it is keyless entry module for central locking. It is suitable for any kind of central locking system with mechanical key control. Package includes two remote controllers, with hopping code communications. It is possible learning into module up to 6 pcs remote controllers.
Module BENE 302 allow selecting many functions by request of specifically vehicles:
selectable lock/unlock impulse duration
selectable impulse duration of trunk release
selectable impulse duration of AUX output
AUX output as closure windows ( VW group vehicles), or other purpose
operational mode for control lights - normal, continuous, pulse
control lights – it is possible use with fixed periods of blinking or by Control lights input.
special function – remote relay (3 relay outputs controlled by remote. Usable as: control of garage doors, winch bumper, etc. )
Remote controllers
1 way remote: 2pcs with three buttons
range of remote controller : 50 meters
number of programmed remote controllers: 6
finding vehicle by remote: yes
Inputs/Outputs
output on directional lights: yes
output for perimeter: yes
AUX output: yes - impulse duration selectable
AUX output current: 200 mA
output for trunk release: relay
comfort closure impulse: yes
Central locking
output type: relay
control signal for electrical central locking: yes
