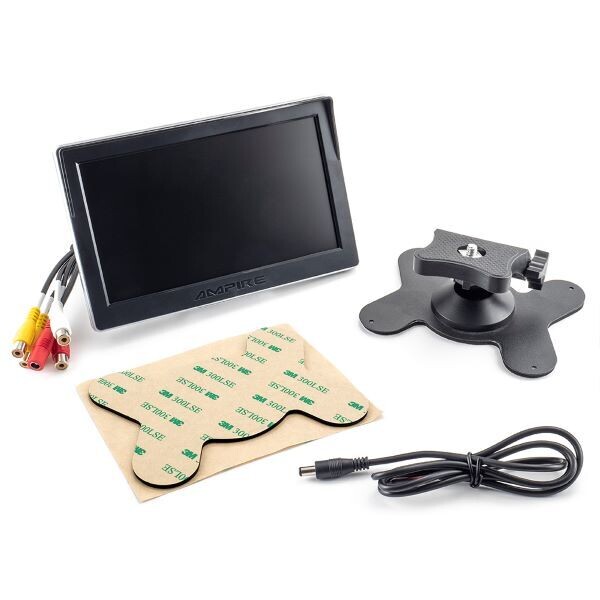

Car 7" TFT-LCD monitor

High-resolution 17.8cm (7") surface-mount monitor for a camera or video signal. Of course, you can also connect the video signal of a DVD player or smartphone to entertain your passengers while driving.

• 17.8cm (7``) active matrix digital TFT LCD display (color)
• LED backlight
• Screen format 16: 9
• Extremely high resolution of 800 x 480
• ON / OFF timer
• Brightness / contrast / color regulation
• Brightness 300cd / m²
• Contrast 500: 1
• Vertical viewing angle 120 °
• Horizontal viewing angle 140 °
• 2 video inputs (FBAS Cinch) 1 Vss, 75 Ohm (priority input 2)
• 2 audio inputs (mono)
• Normal / mirrored image reproduction adjustable
• Normal / rotated image reproduction adjustable
• Integrated loudspeaker
• Menu languages: D, GB, F, E, P, I, NL, TR, JPN, PRC
• automatic NTSC / PAL switching
• Automatic switch-on when the operating voltage is applied
• Self-adhesive mounting base included
• Operating voltage 9-36 volts DC
• Power consumption (on) <250mA @ 12VDC
• Quiescent current consumption (standby) <75mA @ 12VDC
• Operating temperature -20 ° to 70 ° C
• Storage temperature -30 ° to 80 ° C
• Dimensions 180 x 115 x 20mm
• Weight 304g

• 7 "(17.8cm) monitor
• Adhesive foot holder
• connection cable
