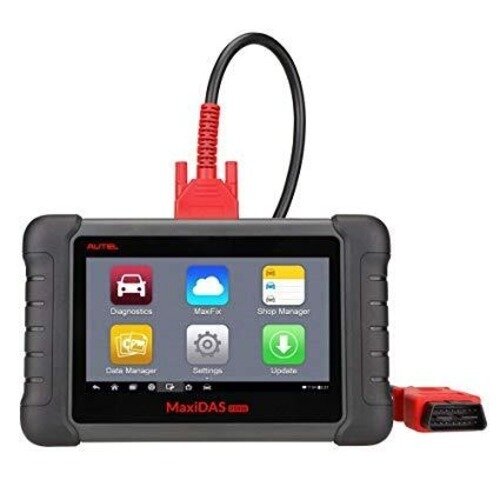

MaxiDAS DS808 car diagnostic device

Based on the Android operating system, MaxiDAS DS808 is featured with an extensive coverage of OE-level diagnostics. Installed with a fast quad-core processor, DS808 offers maximum convenience and efficiency for your diagnosis and analysis. The intuitive user interface makes using the device effortless through a 7-inch LCD touchscreen that displays at 1024 x 600 quality.

FEATURES:

• Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes
• Exceptional OE-Level system coverage for all electronic systems
• Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, etc.
• Smart AutoVIN technology for identifying vehicles easily
• Automatic system and software updates with real-time push message notifications via Wi-Fi
• Instant remote control tech support anytime, anywhere
• Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes
• Interactive Data Logging sessions enable direct contact with Autel Technical Support for first-hand troubleshooting of diagnostic bugs and errors
• One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
• Convenient data management system for managing internal program applications and reviewing data

SPECIFICATIONS:

• Recommended Use: Indoor
• Operating System: Android™ 4.4.4
• Processor: Cortex-A9 processor (1.5 GHz)
• Memory: 32GB
• Display: 7-inch LCD capacitive touchscreen with 1024x600 resolution
• Connectivity: • Mini USB 2.0 • USB 2.0 • Wi-Fi • Micro SD card (supports up to 32GB)
• Sensors: Ambient light sensor for brightness auto changing
• Audio Input/Output: • Input: N/A • Output: buzzer
• Power and Battery: • 3.7 V/3200 mAh lithium-polymer battery • Charges via 5 VDC power supply
• Battery Charging Input: 5 V/1.5 A
• Power Consumption: 500 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
• Operating Temp. -10 to 60°C(14 to 140°F)
• Storage Temp. -20 to 70°C (-4 to 158°F)
• Operating Humidity: 5% - 95% non-condensing
• Dimensions: (W x H x D) 237.8 mm (9.4") x 148.6 mm (5.9") x 35.5 mm (1.4")
• Weight: 788 g (2.42 lb.)
• Supported Automotive Protocols: ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898(Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6
