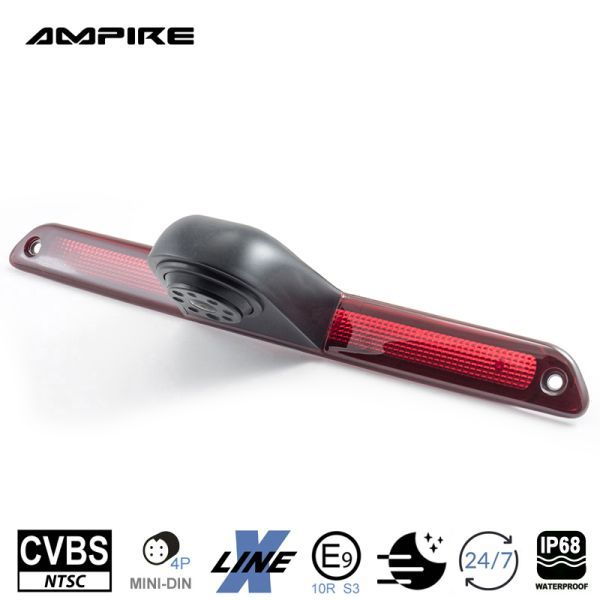

AMPIRE KVX-SPRINTER-4G – REAR VIEW CAMERA FOR MB SPRINTER AND VW CRAFTER VANS

Vehicle-specific reversing camera CVBS (NTSC) for the Mercedes-Benz Sprinter (W906, W907, W910) or the identical Volkswagen Crafter Type 1 (up to 2017). The KVX-SPRINTER is simply replaced with the factory-fitted brake light glass. Infrared lighting is integrated into the camera housing to ensure sufficient illumination even in the dark. An improved camera chip with significantly higher resolution has been used in the second generation of this camera.

The camera is also suitable for 24/7 continuous use.

TECHNICAL DATA

- Image reproduction mirrored

- Guide lines: switched on at the factory (can be switched off)

- Image sensor: 1/4" CMOS PC7070

- Resolution: 648x488 pixels

- Viewing angle 170° diagonal

- Viewing angle 120° horizontal

- Vertical adjustment of the camera 20°

- Picture format: NTSC

- 580 lines resolution

- IP68 waterproof

- Minimum illumination: 0 Lux

- Integrated LED infrared lighting (6 LEDs)

- Operating voltage: 9-16 Volt DC

- Power consumption: max. 150mA

- Operating temperature: -30° to 70°C

- Color: black

- Cable length: 10 meters with 8-pin MINI-DIN plugs

- E approval E9*10R06/00*22328*00

- CE approval EN 55022: 2010; EN 61000-3-2:2006+A1:2009+A2:2009; EN61000-3-3:2008; EN 55024:2010

- FCC approval ANSI C63.4-2003

SCOPE OF DELIVERY

- Rear view camera

- AK1035 Power supply unit

- AK1034 Mini-DIN extension cable 10m
