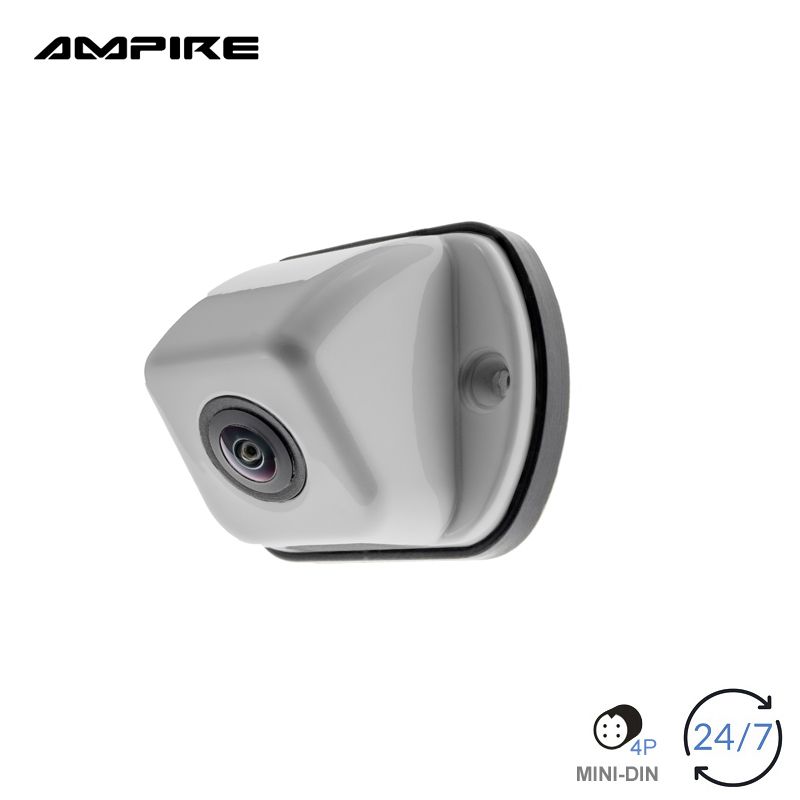

The KV802 wide-angle camera is a reversing camera with unlimited areas of application in motorhomes, caravans, cars, buses, trucks or trailers. The aluminum housing is weatherproof, waterproof and very stable. Optionally, auxiliary lines can be superimposed on the video signal to enable the viewer to park better. The delivery is complete with a 15 meter connection cable with high-quality copper strands.

Camera is available in white, black or silver colours.

TECHNICAL DATA

• Auxiliary lines: switched off at the factory (can be switched on)
• Aluminum housing
• Mirrored image display (adjustable)
• Image sensor type 1/4'' Color CMOS (PC7080)
• Video signal NTSC
• Pixel resolution 648 × 488
• DIN protection class IP67
• Triggering 420 TV lines
• Exposure 1/50-60~1/15000 seconds
• Signal-to-noise ratio =48db
• Dynamic >70db
• Light sensitivity < 0.2 Lux
• Output signal 1.0Vp-p, 75 OHM
• Automatic white balance
• Automatic video level adjustment
• Operating voltage 12 Volt DC +/-10%
• Power consumption 800mW
• Working temperature -40°C to +80°C
• diagonal viewing angle 170°
• horizontal viewing angle 140 ° -
• Camera dimensions 60x45mm and 35mm high
• Seal dimensions 63x48mm and 2mm high
• E certified

KV802 is able to display the video image in four different views.

1. Mirrored image for surface mounting (factory setting)
2. Mirrored image for surface mounting with guidelines (cut the brown cable loop)
3. Normal image for surface mounting (cut the blue cable loop)
4. Normal image for surface mounting with guidelines (cut the blue and brown cable loop)

SCOPE OF DELIVERY

• 1x camera KV802
• 1x 4-pin system extension cable with 15m length ( 100% copper)
• 1x adapter cable to cinch (0.52m) / power line (2.5m)
• 1x rubber seal
• 1x German/English installation instructions
