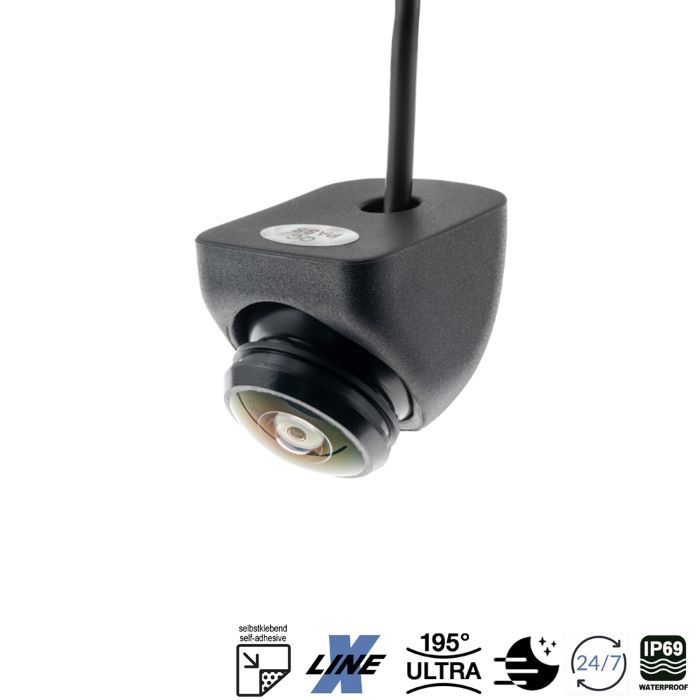

AMPIRE KCX903 – super wide angle automotive camera

Store / Parking sensors and cameras / Cameras

€120.00

Services

Please choose

CAR BRAND

Universal

Features

Rear view

Front view

In stock: 3 available

Product Details

ZĪMOLS: AMPIRE

FUNKCIJA: Priekšskata / Atpakaļskata

The KCX903 super wide angle miniature camera is a rear view camera with unlimited application areas in cars, buses, mobile homes, trucks or trailers. The matt black housing is particularly weather-resistant, IP69K waterproof and very sturdily manufactured. Two different guide lines (narrow/wide) can be optionally displayed in the video signal, which allows the viewer to park more easily. It is supplied complete with an 8 meter extension cable with high-quality copper strands.

TECHNICAL SPECIFICATIONS

2 different auxiliary lines: switched off at the factory (can be switched on)
Matt black housing with various 3M adhesive pads
Mirrored image reproduction (adjustable)
Image display rotated 180° (adjustable)
Image sensor type 1/4 '' 1233 HD Color CMOS Low Light Sensor
NTSC video signal output
Resolution 960H480V pixels
DIN protection class IP69K
800 TV lines
Exposure 60 fileds per seconds
Signal to noise ratio >46dB
Dynamic Range >74dB
Light sensitivity <0.01 Lux / F1.2
Output signal 1.0Vp-p, 75 OHM
Automatic white balance
Automatic video level adjustment
Operating voltage 12 volts DC
Power consumption 25-55mA
Diagonal viewing angle 210°
Horizontal viewing angle 195°
Vertical viewing angle 142°
Camera dimensions 25.3 x 20.3mm and 19.8mm high
Working temperature -40°C to +75°C
Storage temperature -60°C to +105°C
E certified
