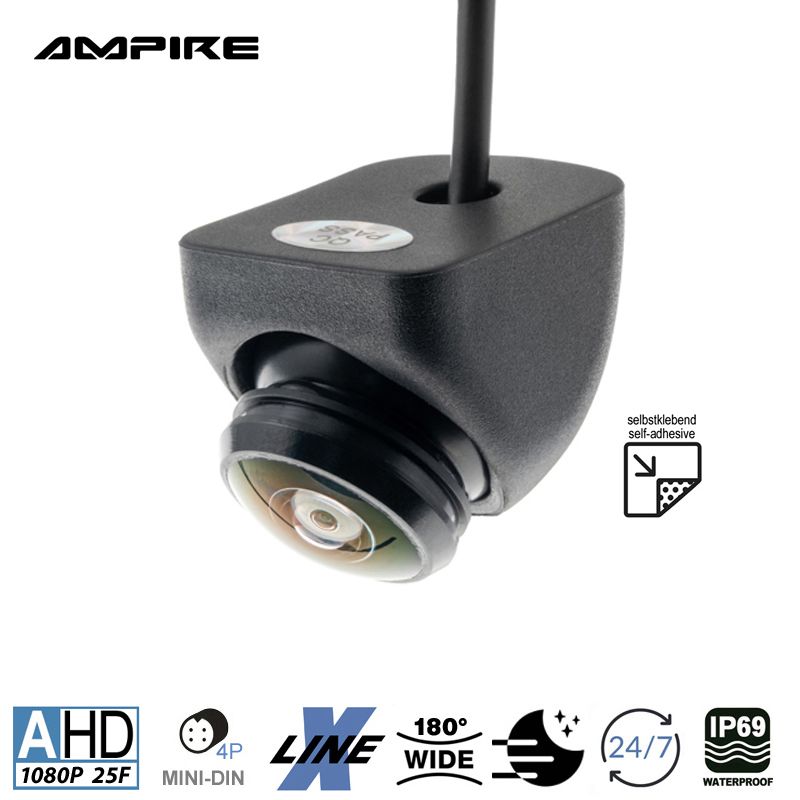

The KCA903 miniature wide-angle under-car camera is an AHD reversing camera with a limitless range of applications in cars, buses, motorhomes, lorries or trailers. The matt black plastic housing is particularly weatherproof, IP69K waterproof and very sturdy. Optionally, two different auxiliary lines (narrow/wide) can be displayed in the video signal to enable the viewer to park more easily. Supplied complete with 8 metre extension cable with high quality copper strands.
FEATURES
AHD 1080P wide-angle camera in plastic housing
Can be used in 24/7 continuous operation
IP69K waterproof in plastic holder
Including various 3M adhesive pads
TECHNICAL SPECIFICATIONS
2 different auxiliary lines: switched off at the factory (can be switched on)
Matt black housing with various 3M adhesive pads
Mirrored image reproduction (adjustable)
Image display rotated 180° (adjustable)
Image sensor type: AHD 1/4" 2729
Resolution 1920H 1080V pixels
DIN protection class IP69K
Exposure 25 fileds per seconds
Signal to noise ratio >60.5dB
Light sensitivity <0.01 Lux
Automatic white balance
Automatic video level adjustment
Operating voltage 6 - 26 volts DC
Power consumption 60-90mA
Diagonal viewing angle 195°
Horizontal viewing angle 180°
Vertical viewing angle 110°
Camera dimensions 25.3 x 20.3mm and 19.8mm high
Working temperature -40°C to +75°C
Storage temperature -60°C to +105°C
E certified
ATTENTION! This camera can be used only with AHD supporting monitors/camera interfaces!
