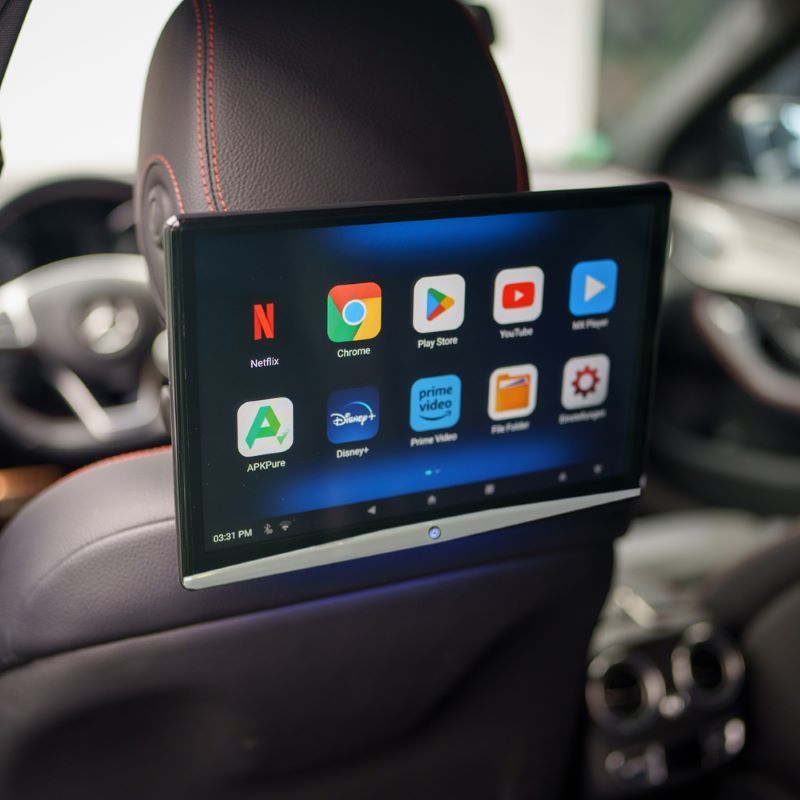

This high-resolution monitor is characterised by the almost unlimited possibilities of the Android operating system and its outstanding picture quality.
While driving, you can either stream your entertainment programme, e.g. from Netflix, YouTube, Prime and Co. live or download it in advance from the WLAN in your home and watch it offline. Of course, the monitor has one digital HDMI input and output each, so two monitors can be connected to each other.
The AMX125 can play back the sound wirelessly via optional wireless headphones, via FM transmitter or via A2DP of the car radio. Alternatively, the monitor has a built-in speaker, 3.5 mm headphone minijack, as well as a stereo RCA output for connecting to the AUX input of your factory-fitted car stereo.
The AMX125 is connected to the hotspot of your smartphone or a WLAN router during the journey to have access to the Internet. To save data volume, you can also download the films and series at the home, write them on USB stick or microSD card and then enjoy them "offline".
TECHNICAL DATA
Display
- Digital 31.5cm (12.4'') LED IPS display (New Grade A)
- capacitive G+G multipoint touch screen
- Resolution 1920 (H) x 1200 (V)
- Brightness 350 cd/m²
- Contrast 800:1
- Viewing angle 170° horizontal, 170° vertical
- 4K video decoder
- NTSC/PAL playback automatic
- Display complies with ISO 9241-307, pixel error class II
Inputs/Outputs
- Inputs: Video (Cinch), HDMI, USB 2.0 and micro SD card
- Outputs: HDMI, audio output via cinch, 3.5 mm headphone connection
- Two integrated stereo loudspeakers (2x 5 watts)
- With the integrated FM transmitter, you can play back the sound as an FM radio station via the car radio. FM frequencies can be set from 88 to 108MHz: We recommend using the FM transmitter to transmit sound only as a stopgap measure, as the sound quality from FM is not high quality.
- WLAN IEEE 802.11 a/b/g/n, 2.4GHz+5.0GHz
- Built-in A2DP transmitter for an optional wireless headset (maximum one headset), or for audio transmission to your car radio*.
*Only if supported by the car radio. Please follow the manufacturer's instructions.
General
- Controlling the monitor via smartphone using the "MyCar Link" app
- Android 10.0
- 64bit Deca-Core processor with up to 2.0GHz
- 3GB RAM / 16GB flash memory
- microSD card reader (max. 128GB)
- Mood lighting with 7 colours
- Supported video formats: AVI/MP4/VOB/RM/RMVB/DAT/MPEG1/MPEG2/MPEG4/Real Video/FLV/H.263/H.264/H.265/VC-1/VP6/VP8/MVC ...(4K)
- Supported audio formats: MP3/WMA/PCM/CD
- Supported photo formats: JPG/JEPG/BMP
- OTA update
- Dimensions monitor 292x197x27mm
- Weight monitor without bracket 1100g
- Operating voltage 12VDC (min. 10VDC, max. 24 VDC)
