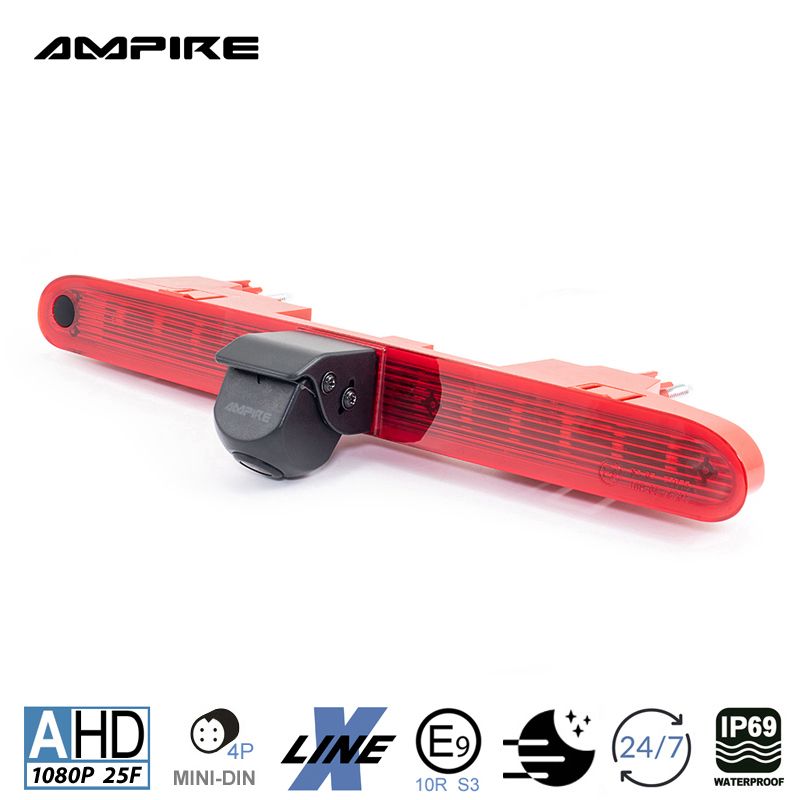

AMPIRE KVA-BERLINGO – AHD (HIGH DEFINITION) REAR VIEW CAMERA FOR CITROEN BERLINGO 2008-XX, PEUGEOT PARTNER/RIFTER 2008-XX, OPEL COMBO 2018-XX, FIAT DOBLO 3 2022-XX and TOYOTA PROACE CITY 2018-XX

Vehicle-specific reversing camera AHD 1080P to replace the factory brake light glass. Fitting for following vehicles:

• CitroEn Berlingo 3 (from year of construction 2018)
• Fiat Doblo 3 (K9) (from year of construction 2022)
• Opel Combo E (from year of construction 2018)
• Peugeot Rifter (from year of construction 2018)
• Toyota Proace City (from year of construction 2020)

TECHNICAL SPECIFICATIONS

• Video standard AHD 1080P 25F
• Image sensor: GC2399 (FH8536H)

• Image sensor size 1/2.7

• Resolution 1920x1080 pixels

• 3D noise reduction

• Sequential scanning

• Minimum illumination: 0.005 lux

• Signal-to-noise ratio >50dB

• Automatic white balance

• Image reproduction horizontally mirrored

• Auxiliary lines: switched on (can be switched off by disconnecting cable loop)

• Horizontal viewing angle 155°

• Vertical viewing angle 100°

• Diagonal viewing angle 185°

• Camera head vertically adjustable up to 20

• Protection class IP69 waterproof

• Operating voltage: 9-16 Volt DC

• Power consumption: max. 75mA

• Operating temperature: -20° to 70°C

• Colour: black

• Cable length: 10 metres with 4-pin MINI-DIN plugs

• E approval E9*10R06/00*22328*00

• CE approval EN 55022: 2010; EN 61000-3-2:2006+A1:2009+A2:2009; EN61000-3-3:2008; EN 55024:2010

• FCC approval ANSI C63.4-2003

SCOPE OF DELIVERY

• camera

• AK1037 Power supply unit with blue connectors

• AK1039 Mini-DIN extension cable 10m with blue connectors

ATTENTION! This camera can be used only with AHD supporting monitors!

Additional information:

• Product page on Ampire website
• Owner manual
